Item specifics
  • Cabinet Material: Metal
  • Interface Type: USB,AUX
  • Communication: Wireless+Wired
  • Speaker Type: Portable
  • Support APP: No
  • Playback Function: Radio,MP3
  • Wireless Type: Bluetooth
  • Material: Plastic
  • Battery: Yes
  • Feature: None
  • Special Feature: Wireless,Portable,Mini
  • Speaker Structure: Sealed
  • Support Apt-x: No
  • Support Memory Card: Yes
  • Model Number: JY-16
  • Frequency width: 100Hz-15KHz
  • is_customized: Yes
  • Use: Portable Audio Player, Mobile Phone, Computer
  • Speaker Type: Front
  • Audio Classification: Mini
  • Type: Passive
  • Radio: Yes
  • Loudspeaker Accommodation Mode: Button
  • Channels: 2 (2.0)
Product Description



.................................................................................................................................................................................
black gold Silver
You can click favorite color to buy, or would you like the color mark. Not that we will randomly select shipping
Attention:
                As different computers display colors differently, the color of the actual item may vary slightly from the above images,
thanks for your understanding.

23-Main-features

Specifications:
  1. Bluetooth Version: 3.0
  2. Bluetooth profiles: A2DP,AVRCP, HFP, HSP
  3. Bluetooth Range: 10M
  4. Output Power: RMS 3W+3W
  5. Speaker: 4Ω 3W 2inch
  6. Frequency Response: 60Hz-20KHz
  7. S/N Ratio: >70dB
  8. Distortion: <1%
  9. Cable: 3.5mm jack audio cable

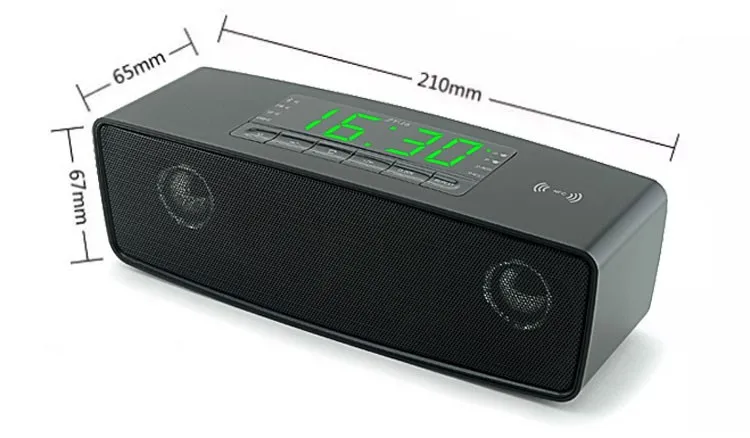

  10. Product Dimension: 210x67x65mm
  11. Product net Weight: 0.61Kg
jy-16-001
jy-16-b002
24-Shipping-list
Package Includes:
1x Bluetooth Speaker
1x Audio and USB charging cable
1x Retail box

If you have any questions. Please contact us directly. I\'ll get back to you promptly. Thank you.
details

jy-16-002

JY-16
Bluetooth stereo, a digital screen display Bluetooth stereo, a collection of Bluetooth. Time and alarm .TF.U disc. Radio .AUX multifunctional external sound from digital sound.
Dual speakers + vibration mode crossover design, more deep and powerful bass.
Friendly interface and clear screen instructions. Operation more convenient.
3.0 Bluetooth module, support for mobile phone / computer and other devices with Bluetooth capabilities, extensive compatibility.

jy-16-006jy-16-003jy-16-008

jy-16-004
NFC connection mode

Audio support NFC connectivity, right in the middle sound of "" this screen, NFC module for touch position, hold the phone\'s NFC feature is turned on, the location of the cell phone with NFC shell NFC touch sound position, when the two sides sensed when the other side, the phone will be the words "whether pairing Bluetooth devices" and then click "OK" after you can use this feature.
             jy-16-005



Bluetooth connection mode:
Boot and press M key to switch to Bluetooth mode, and there are English language prompts Bluetooth state, then the state of the Bluetooth indicator light flashes slowly, indicating that waiting for a connection, connect the phone. Bluetooth tablet or other device is opened, enter the Bluetooth device search when searching the JY-17 Bluetooth file names, please click on the link. after successful pairing, the speaker voice prompts successful connection, the Bluetooth indicator light, after the connection is completed your phone or tablet in order to play selected music.

jy-16-007

Support AUX input. TF card player. USB disk player

25-special-note

When radio mode, please plug AUX3.5 Stereo signal line as antenna to receive radio stations.

Set Time / Alarm
1: bell clock settings
1: Boot into long press CLOCK
1) Press CLOCK button, is the time set, this time into the choice of setting the clock hour, while the hour display will flash, flashing time 5S;
2) In setting the clock hour, the operation or the next song on a clock hour plus or minus buttons, hour flashing time 5S;
3) clock hours to determine, press CLOCK, enter the clock-minute set, minute ,, this time the display will flash flashing time 5S;
4) In setting the clock minutes when operating on a clock or the next song button minute addition and subtraction, minutes flashing time 5S;
5) minutes after the clock OK, press CLOCK, enter the week setting, operating on a first day of week or next track key addition and subtraction, the week is displayed as d1, d2, d3, d4, d5, d6, d7, this When the display flashes, flashing weeks time 5S;
6) In determining the week, press CLOCK, determine the current time for you to just set the time;
Note if there is no time in setting the clock till the end, then press the OK button clock, the time set is invalid.
2. Press CLOCK
1) In the clock mode, press CLOCK, is set in the week to check how much time is displayed for five seconds week after the automatic return to the clock display.
2) In the week when the display, press CLOCK, immediately return to display the status of the clock;

2: Alarm settings
1. Press M
1) Press M, is one of alarm settings, set the alarm time into hours of choice, but the hour display will flash, flashing time 5S;
2) Set the alarm one hour when operating on an alarm clock or the next track buttons perform one hour of addition and subtraction, hours flashing time 5S;
3) determine the alarm one hour, press M, enter the alarm settings for a minute, minute, then the screen will be flashing, flashing time 5S;
4) Set the alarm one minute when operating on an alarm clock or the next track buttons were one minute addition and subtraction, minutes flashing time 5S;
5) one minute after the alarm is determined, press M, enter the alarm settings week, then every day if needed downtown, it is set to 1-7; If you need working downtown, then it is set to 1-5; if necessary Weekend trouble, then it is set to 6-7; at the same time a week will be flashing;
6) Set the alarm in the week, when operating on a first or next track buttons add or subtract one week alarm options, flashing weeks time 5S;
7) after one week to determine the alarm, press M, enter the type of setting alarm clock, alarm type BB, BT, FM, USB, SD, there is a special type is OFF, this type is to choose no trouble setting . (If you set the alarm, and suddenly does not want trouble, then you choose this type of alarm clock, which at this time to the alarm time, it will not trouble)
8) Set the alarm when an alarm type, operating on a button to perform the next song or an alarm clock type of addition and subtraction, the type of flashing alarm time is 5S;
9) After a beeping alarm type is determined, press M, determine the current time when you just set the alarm clock and alarm types;
10) When the alarm clock goes into a set after set 2, set the same way, like an alarm clock.
Remarks If setting the alarm did not go to the end, when the OK button is pressed M, then set the alarm is invalid.

3: Alarm Settings
1) clock and alarm time exactly the same time to start trouble, while the backlight is bright, busy, then the sound is gradually increasing, in one minute, when the volume reaches a maximum, the alarm time is one hour;
2) when the alarm by pressing any key will turn off the alarm at this time.
